| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T55G |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 55KW |
|---|---|---|---|
| Voltage: | 380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| OEM: | Yes | Control Mode: | VF Control |
| High Light: | 55KW Pump Frequency Inverter,VFD Pump Frequency Inverter,55KW VFD 380v |
||

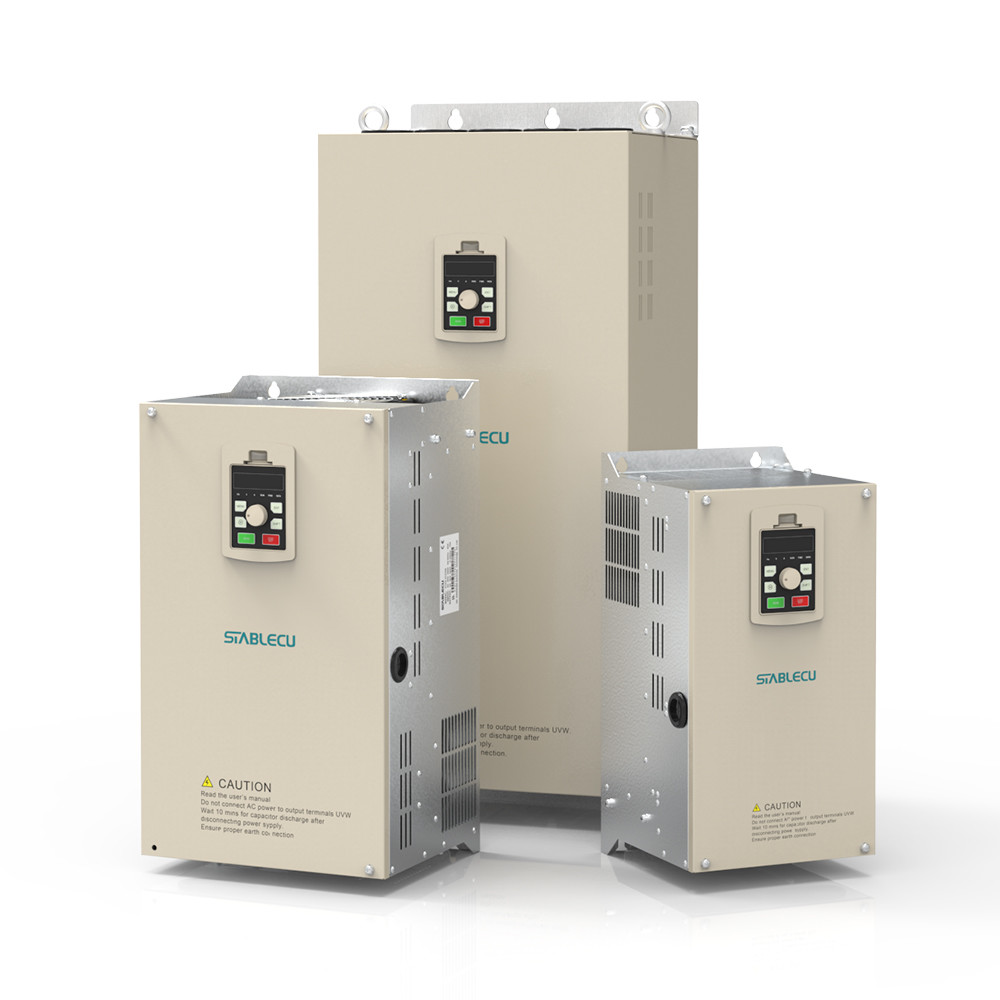

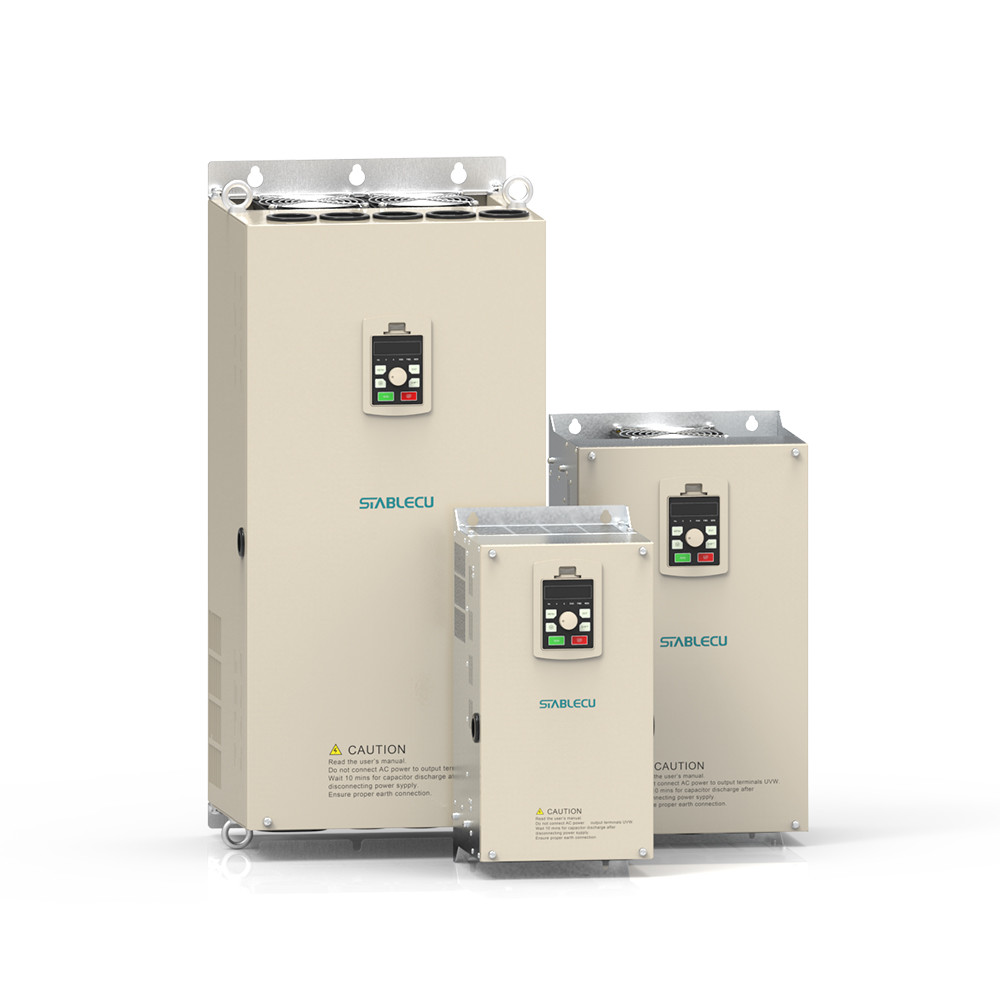

55KW VFD Frequency Pumping Inverter V/F Control With IGBT Technology
Introduction of frequency converter
The ST-310 Series is ideal for variable and constant torque applications from pumps and fans to conveyors and mixers, as well as many other variables and constant torque applications. Adopting the most advanced vector control technology, DSP control system, and Infineon’s latest IGBT technology; excellent unique ventilation design; powerful large fan detachable, which is conducive to customer maintenance; control panel can be disassembled, and distance operation can be selected; products Stable performance, simple operation, widely used in various applications, good customer feedback.
The finished product assembly of the frequency converter
When the finished product is assembled, work according to the working instruction standard of different power sections to ensure the consistency of each machine.
In the assembly process, self-inspection and protective inspection should be carried out for each process, and then the quality personnel should carry out layer by layer inspection to ensure that the product quality will not be affected due to the negligence of the assembly personnel, so as to ensure the reliability of the production process.
Product Parameter of frequency converter
| Variable Frequency Drive | Module | ST310-4T55G |
| Max. Applicable Motor Capacity (kW) | 55 | |
| Rated Input Current (A) | 118 | |
| Rated Output Current (A) | 112 | |
| Max. Output Voltage (V) | Three-phase 380 | |
| Max. Output Frequency (Hz) | 3000 | |
| Braking Resistor | Optional Built-in | |
| Resistance(Ω) | 10 | |
| Power Rated Voltage/Rated Frequency | Three-phase AC power supply 380 V | |
| 50 / 60 Hz |
Product Details of frequency converter
Application of frequency converter
Widely used in various industries and equipment such as spinning machine, stacker reclaimer, feeding machine, calciner, cigarette maker, air compressor, steelmaking, crusher, drawing machine, dyeing machine, hoist, injection molding machine, laundry facilities, paper machine, special power, water pump, fan, mixer machine, rolling mill, and so on.
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
