VFD Single Phase To Three Phase Frequency Inverter 15KW 20HP

Basic Information
Place of Origin: China
Brand Name: STABLECU
Certification: CE
Model Number: ST310-4T11GB
Minimum Order Quantity: 1PCS
Price: $278-$292
Packaging Details: 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Material: ABS+PC Power: 15KW
Voltage: 380V Color: Huawei Gray
Warranty: 18 Months Output Type: Triple
Output Frequency: 0.00~300HZ Product Name: Frequency Converter/inverter
High Light:

VFD Three Phase Frequency Inverter

,

15KW Three Phase Frequency Inverter

,

20HP Three Phase Frequency Inverter

15KW 20HP VFD Single Phase To Three Phase Frequency Inverter



Instruction of frequency inverter

The ST310 series is an inverter for high-performance v/f control primarily for three-phase asynchronous motors.
Controls the AC motor with its working power supply by varying its frequency, voltage, and current. The motor exhibits
several characteristics, such as a high-speed rotation, high torque, high acceleration and deceleration, and a high capacity
for overloading. Multi-protection features and stable performance are the hallmarks of the ST310 series.
The wide voltage design, which is in compliance with international requirements, including the United States, Europe, Asia,
South America, and other countries, make the products widely used in many fields across the globe.

Software design of frequency inverter

1. Currently available is the V/F control mode (open-loop vector control and closed-loop vector control are under development).
2. For control, a maximum frequency of 3000Hz is allowed
3. The wave-by-wave current limit algorithm is the first line of defense against hardware protection component impact.
4. A conventional overload capacity of 150% in 60 seconds, 180% in 10 seconds, and 200% in 0.5 second
5. With speed tracking, small current and voltage impacts, and accurate tracking speeds are possible
6. The frequency converter has a four-time fault record that records currents, voltages, and temperatures during the fault process,
aiding in the diagnosis of faults
7. A group of parameter values can be copied and backed up in the panel, making debugging multiple devices convenient.
8. A carrier frequency of 0.7 to 16 kHz is used. It is possible to automatically adjust carrier frequency at the same frequency
as the frequency conversion temperature and operating frequency to ensure reliable operation under conditions of a small
temperature rise.
9. It includes a temperature detection module, an overheat alarm temperature setting, and a flexible start system, which extends
the life of the fan by following the temperature.
10. It supports a maximum of 16 speeds.

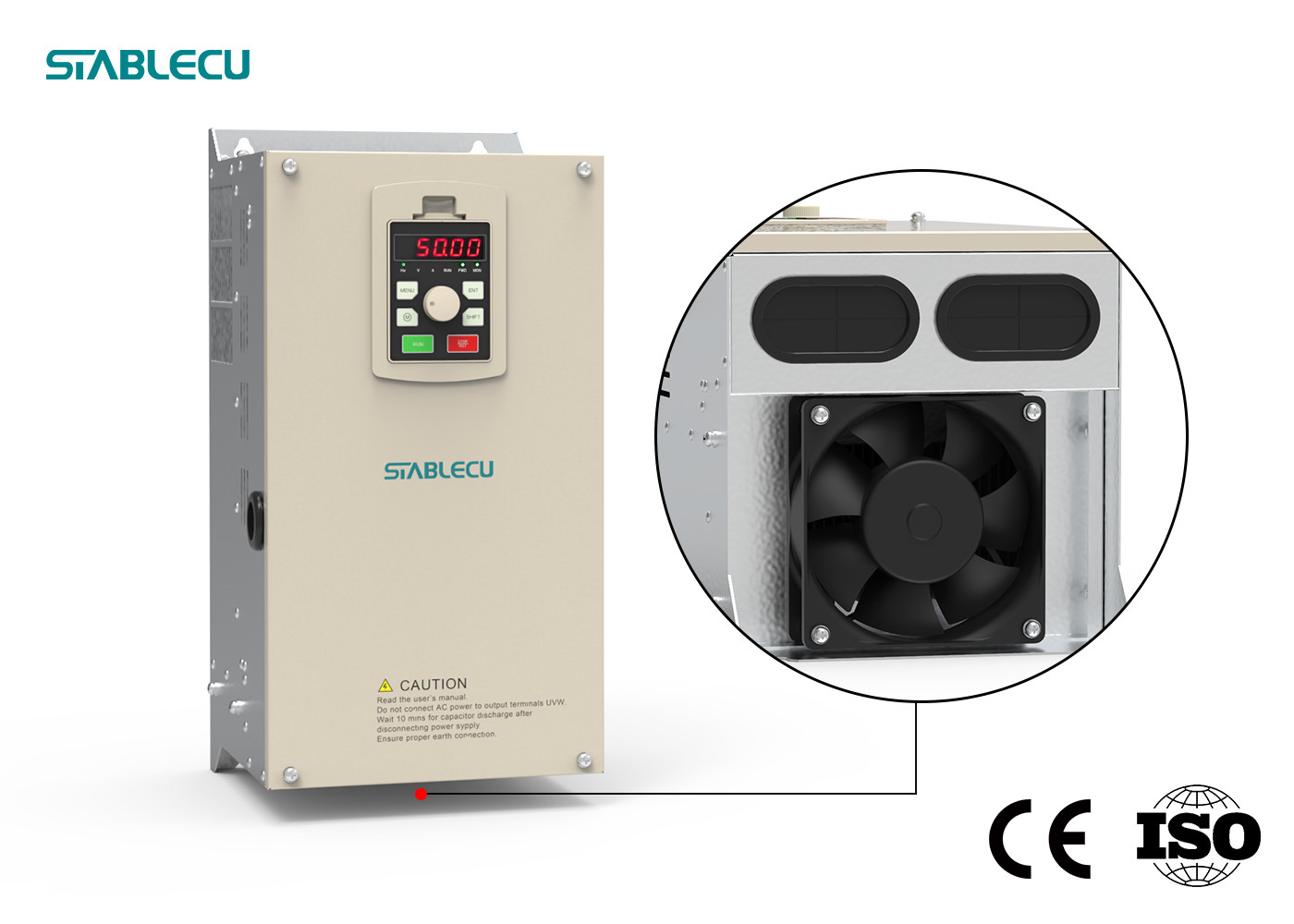

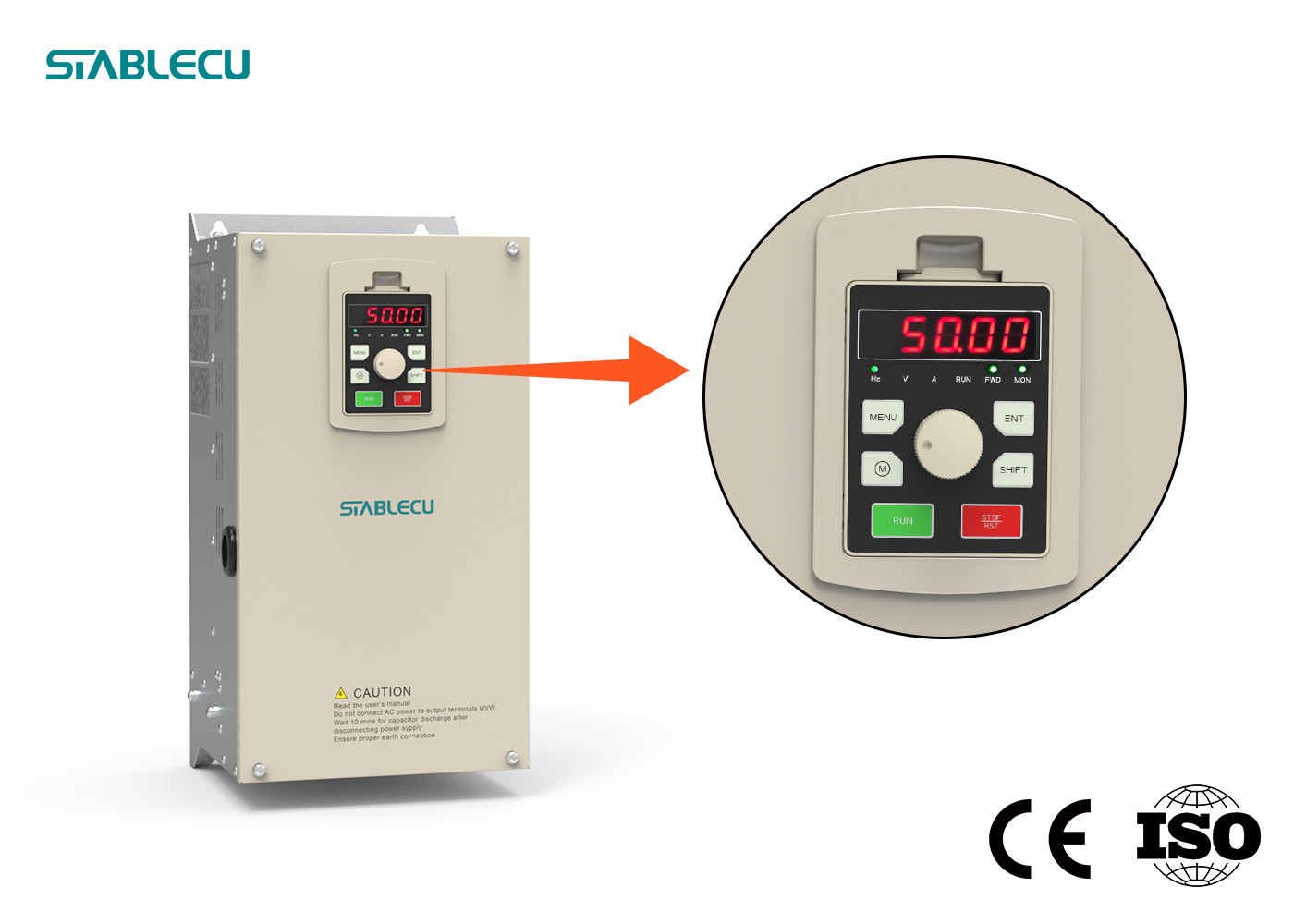

Detailed image of frequency inverter

VFD Single Phase To Three Phase Frequency Inverter 15KW 20HP 0VFD Single Phase To Three Phase Frequency Inverter 15KW 20HP 1

Application for frequency inverter

Many industries and equipment use it, such as spinning machines, stacker reclaimers, feeding machines, tablets,
calciners, cigarette makers, air compressors, steel buildings, crushers, drawing machines, dyeing machines, hoists, i
njection molding machines, laundries, paper machines, special power, water pumps, fans, mixer machines, rolling mills, etc

VFD Single Phase To Three Phase Frequency Inverter 15KW 20HP 2
